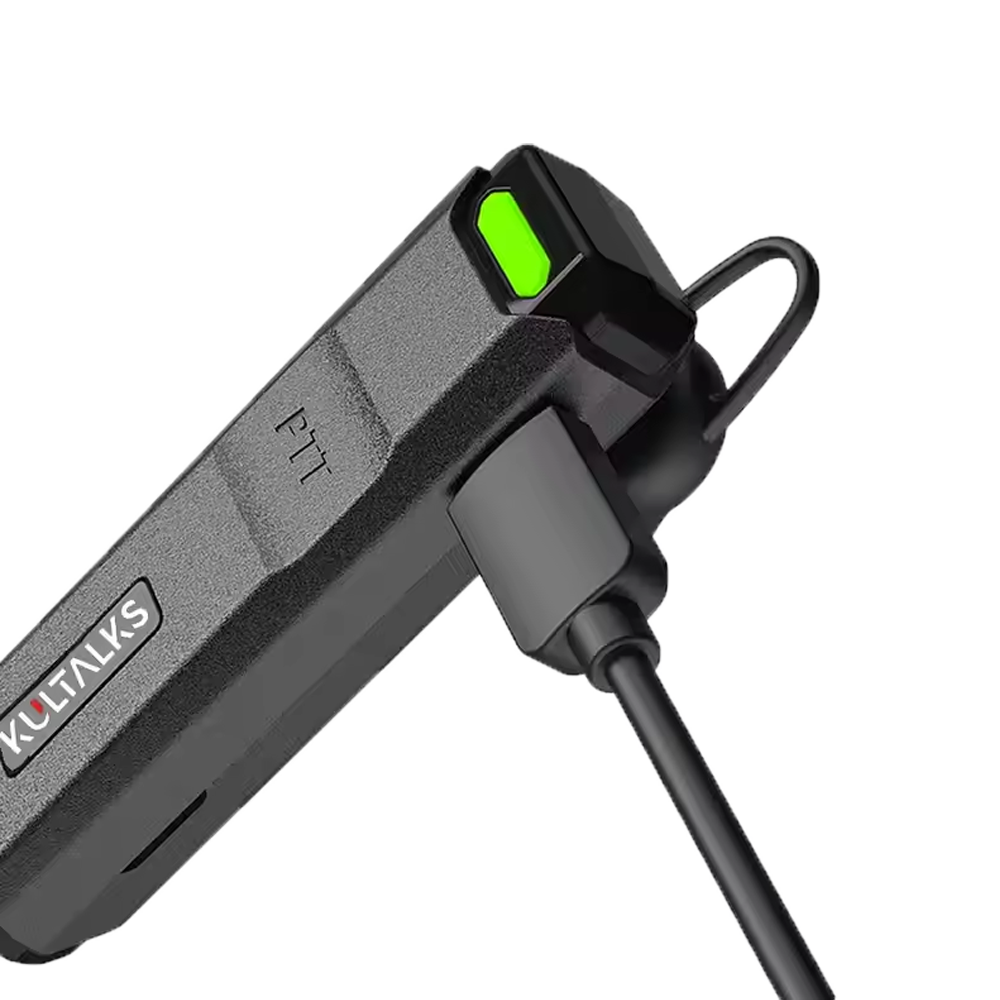

Type-C charging port
AI noise recduction
Wireless frequency copy

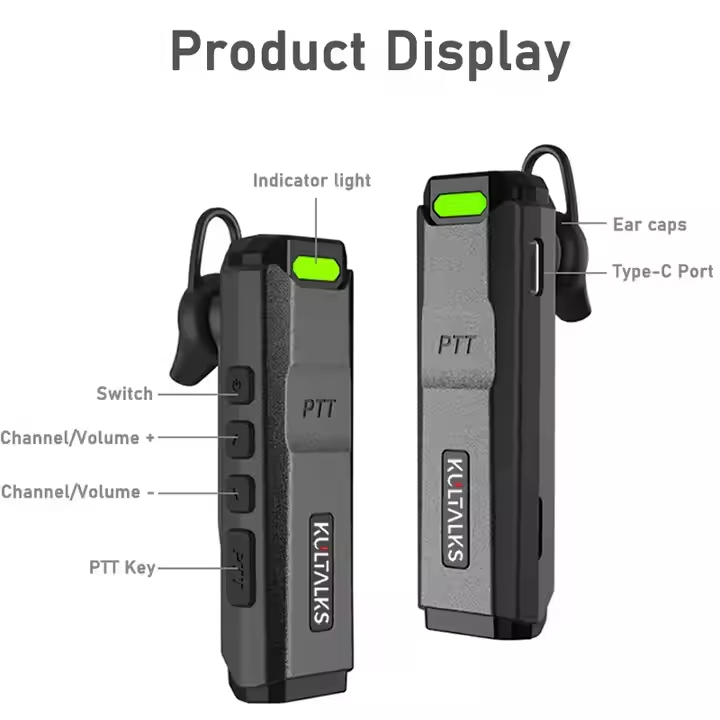

Dual PTT transmitter with touth
Smart power saving
Tail sound elimination
GENERAL
Frequency
UHF:400-470MHz
Channel capacity
16
Channel space
12.5/25KHZ
Frequency stability
±2.5ppm
Voltage
3.7V DC±15%
Antenna impedance
50Ω
Work temperature
-20℃ to +60℃
Battery capacity
1000mAh
Size(include battery, exclude antenna)
72x22x15mm
Weight(include battery and antenna)
22g
TRANSMITTER
Output power
0.5W
Max Freq Deviation
±5kHz
FM Hum & Noise
40dB
Signal Noise Ratio
≤±5KHz/±2.5kHz
RECEIVER
Sensitivity (12 dB SINAD)
0.22uV/0.25uV（12dB SINAD)
Adjacent channel selectivity
≥70dB
Audio output power
1W
Audio distortion
<5%
