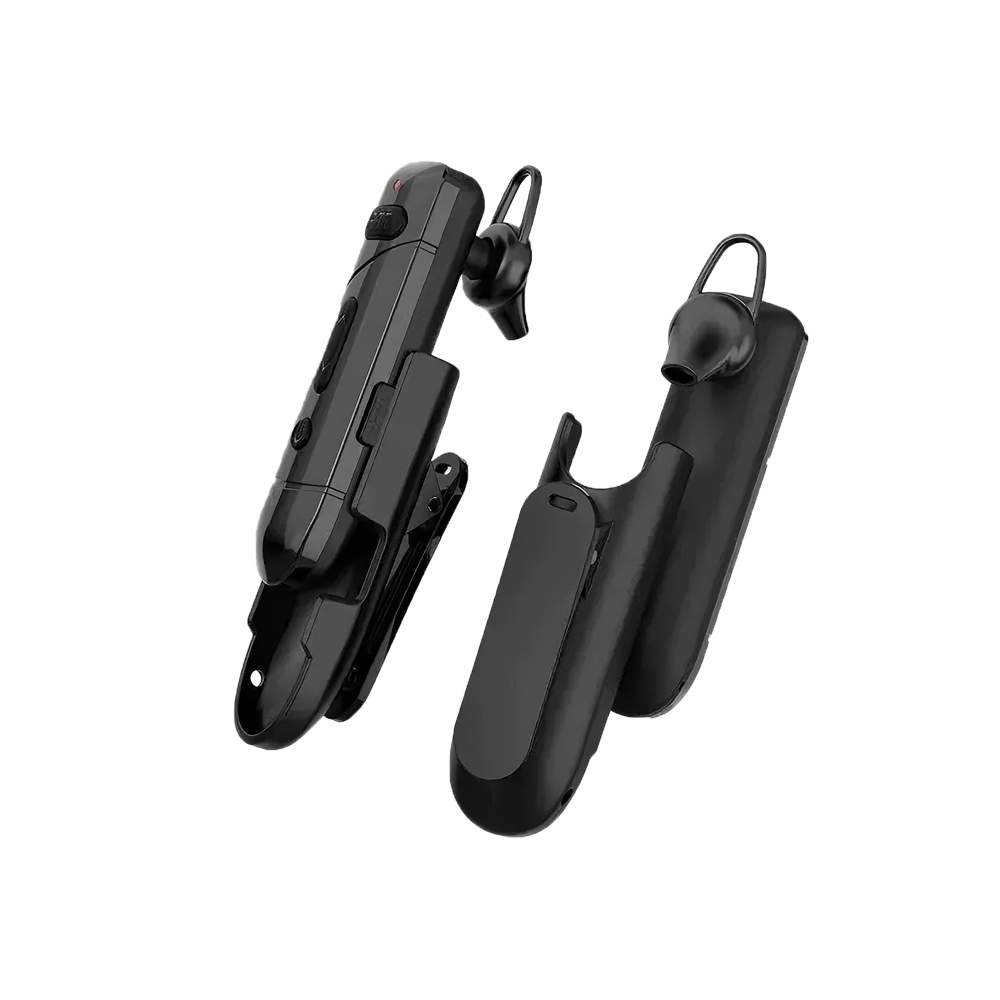

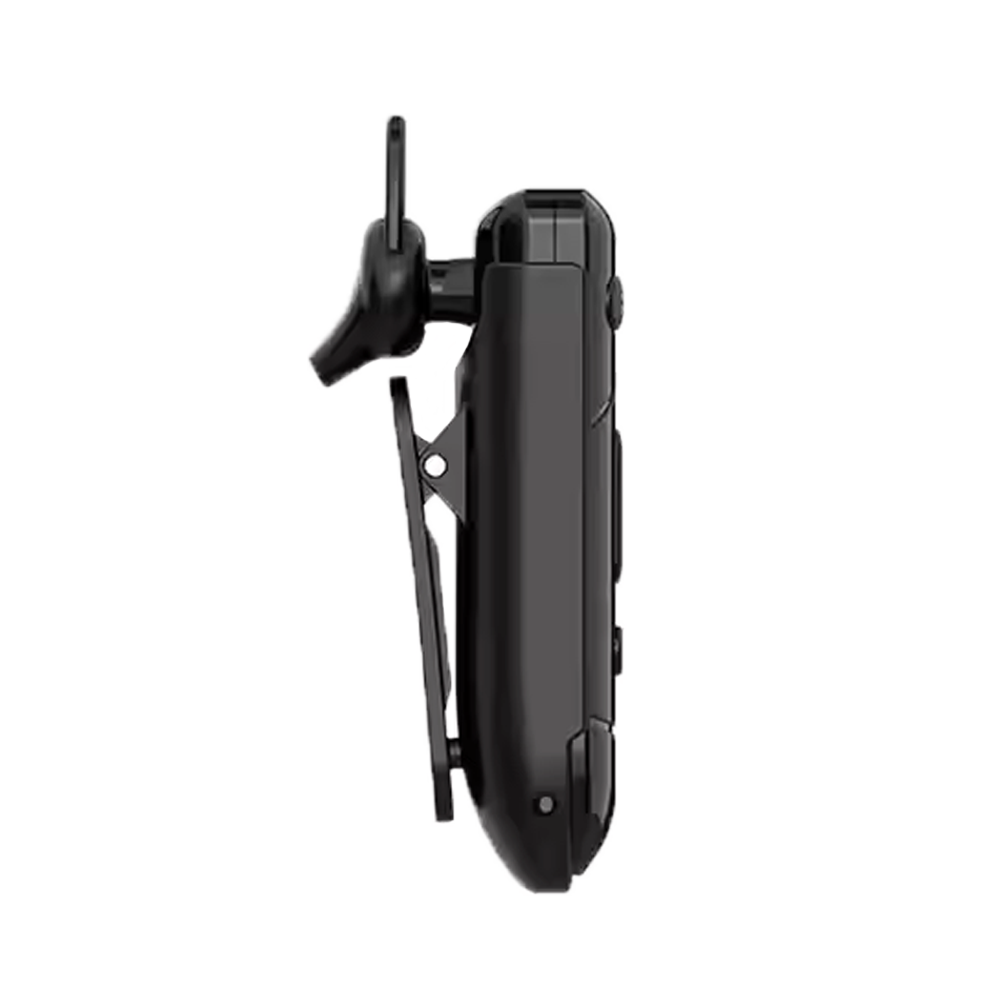

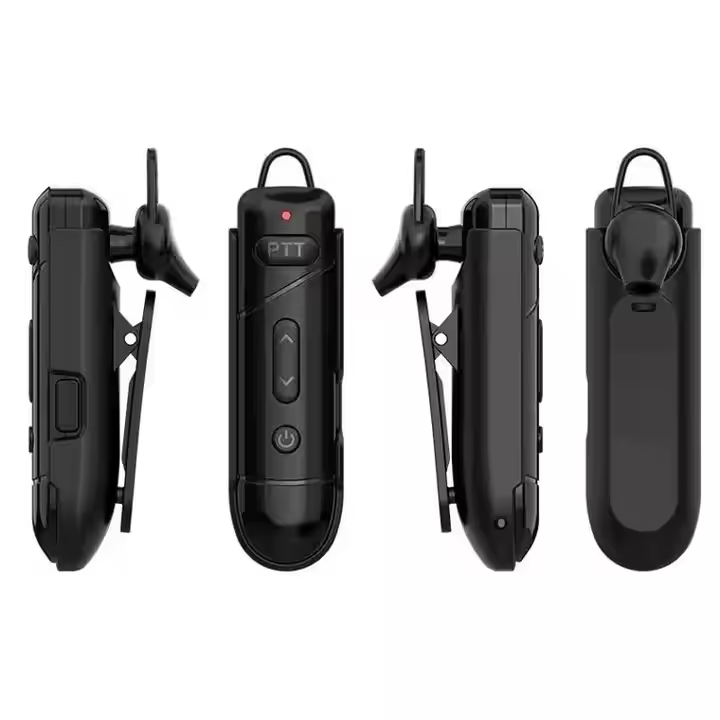

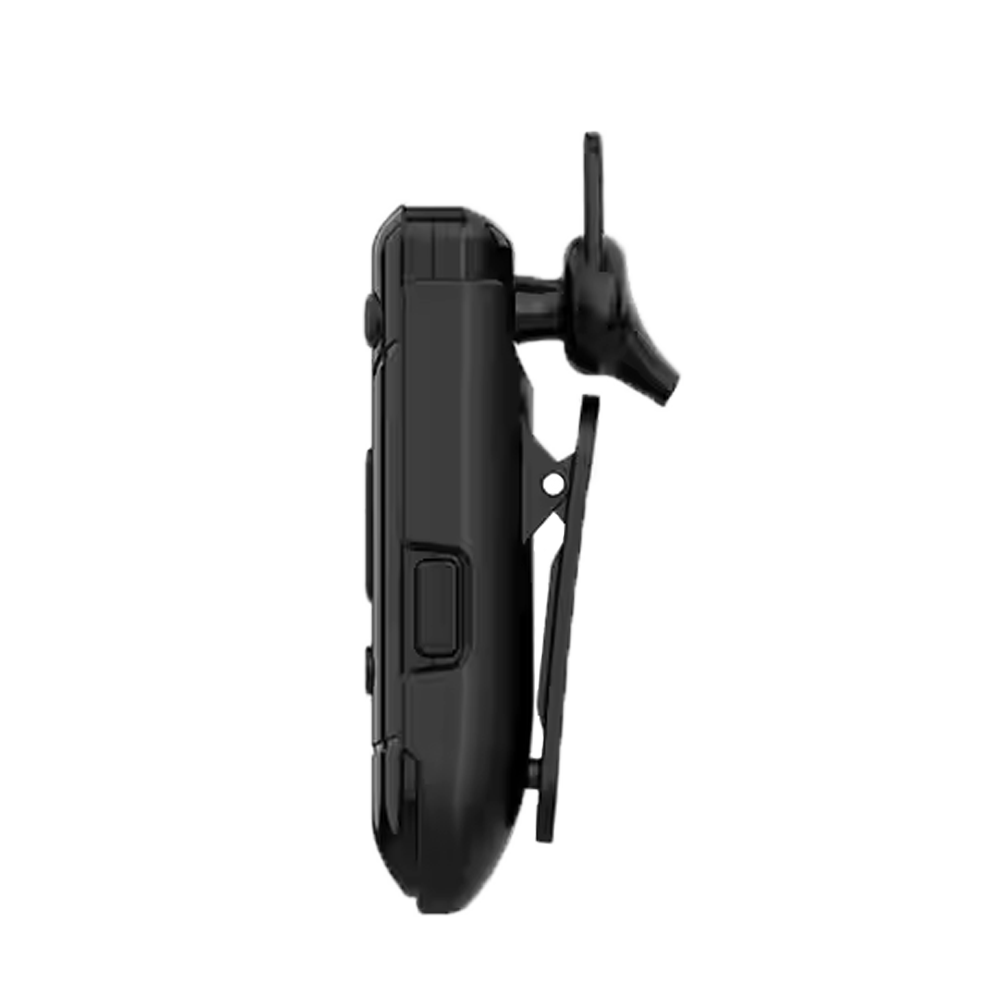

Mini earhook design
QT/DQT function
Busy lock function
Scanning function
Launch timeout prompt
VOX Function
GENERAL
Frequency
UHF:400-470MHz
Channel capacity
16
Channel space
12.5/25KHZ
Frequency stability
±2.5ppm
Voltage
4.2vdc +15%
Antenna impedance
50Ω
Work temperature
-20℃ to +60℃

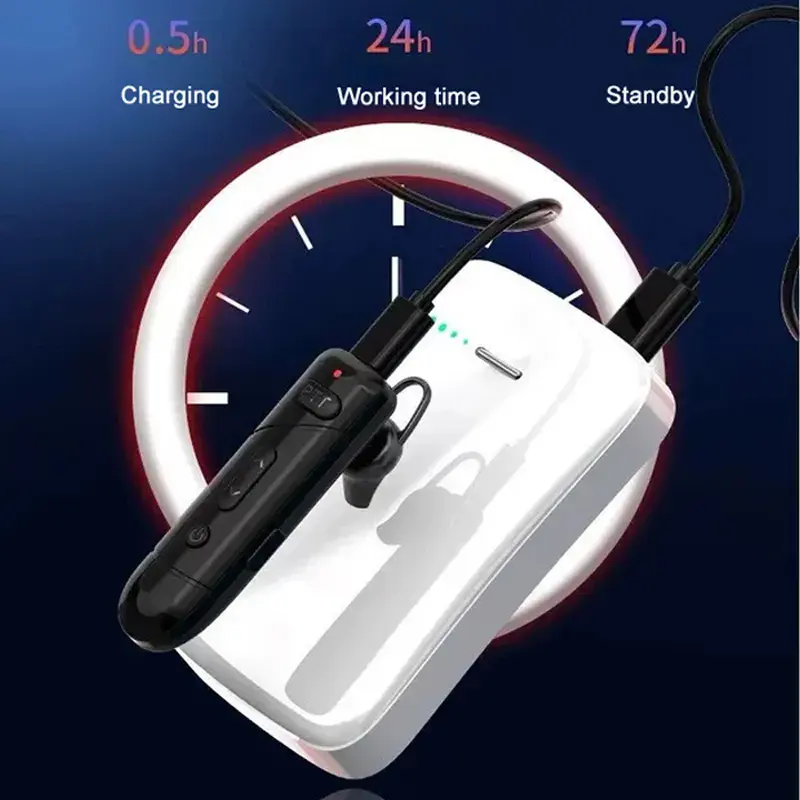

Battery capacity
550mAh
Size(include battery, exclude antenna)
75x19x313mm
Weight(include battery and antenna)
16g
TRANSMITTER
Output power
0.5W
Modulation limit
F3E
FM Hum & Noise
≤-45dB
Modulation maximum deviation
≤±5KHz
RECEIVER
Sensitivity (12 dB SINAD)
0.18uV
Adjacent channel selectivity
55dB
Audio output power
≥400mw
Audio distortion
<5%
