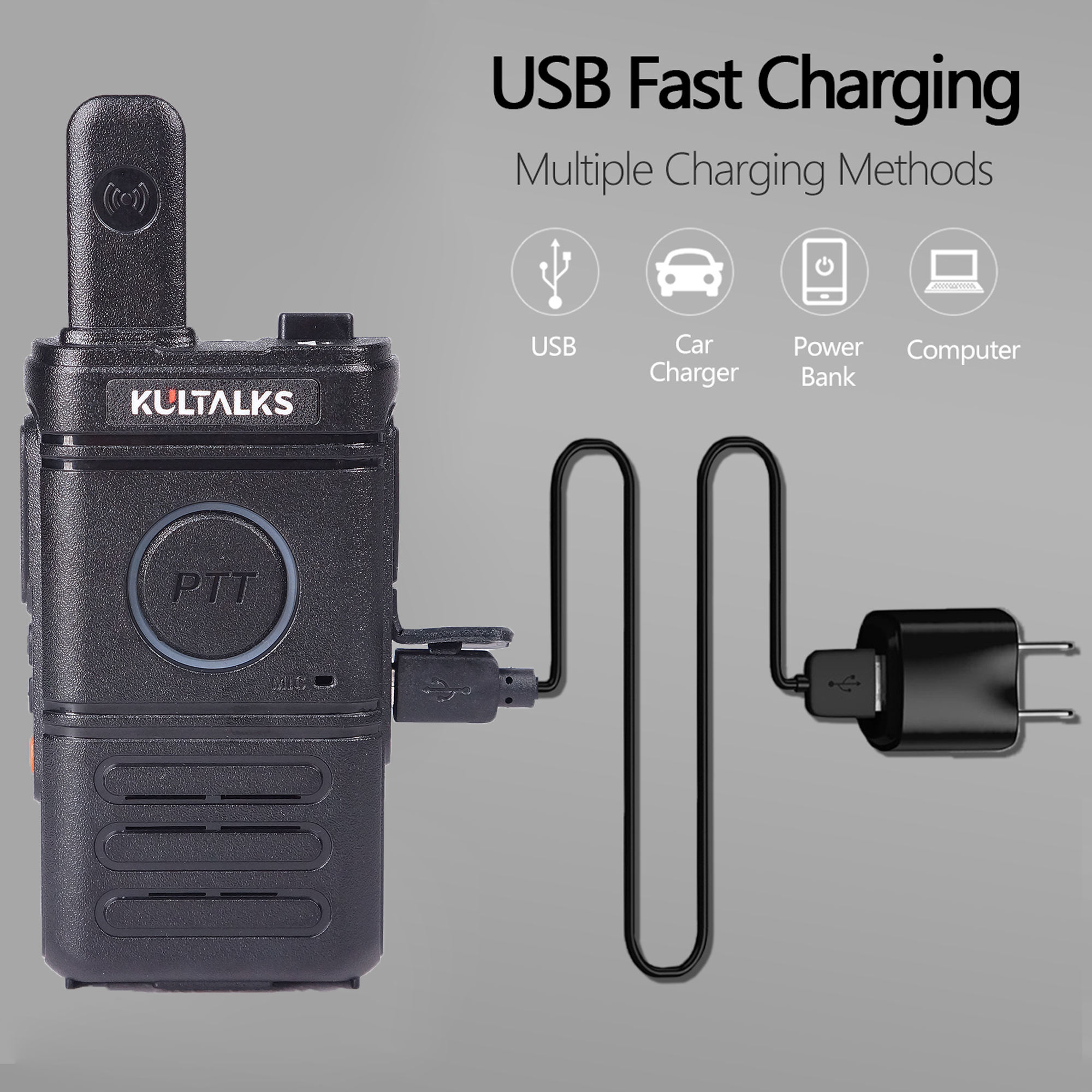

Micro USB charging
CE&FCC Certificate
Ultra-light design(97g Only)
Dual PTT
GENERAL
Frequency
UHF:400-470MHz
Channel capacity
16
Channel space
Wide25KHz/Narrow12.5KHz
Frequency stability
±5ppm
Voltage
DC3.7
Antenna impedance
50Ω
Work temperature
-20℃ to +60℃
Battery capacity
1200mAh
Size(include battery, exclude antenna)
130(H)x55(W)x22(D)mm
Weight(include battery and antenna)
About 97g
TRANSMITTER
Output power
2W
Modulation
2.5KHz@12.5KHz 5KHz@25KHz
FM Noise
≤45dB
Max Frequency Deviation
≤+5KHZ
RECEIVER
RX Sensitivity
0.2uV/121dBm(24dBSINAD)@25KHZ
Adjacent channel selectivity
50dB@2.5kHz/55dB@20/25kHz
Audio output power
1W
Audio distortion
≤5%
