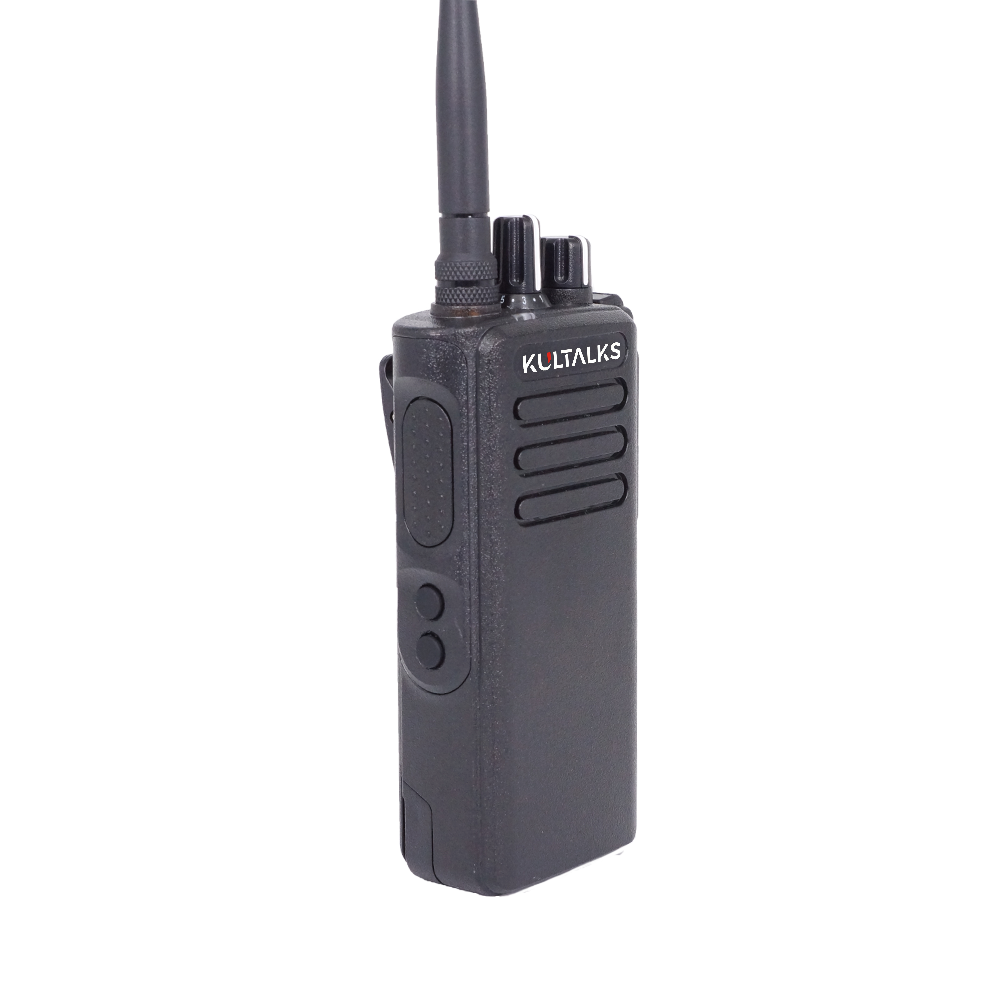

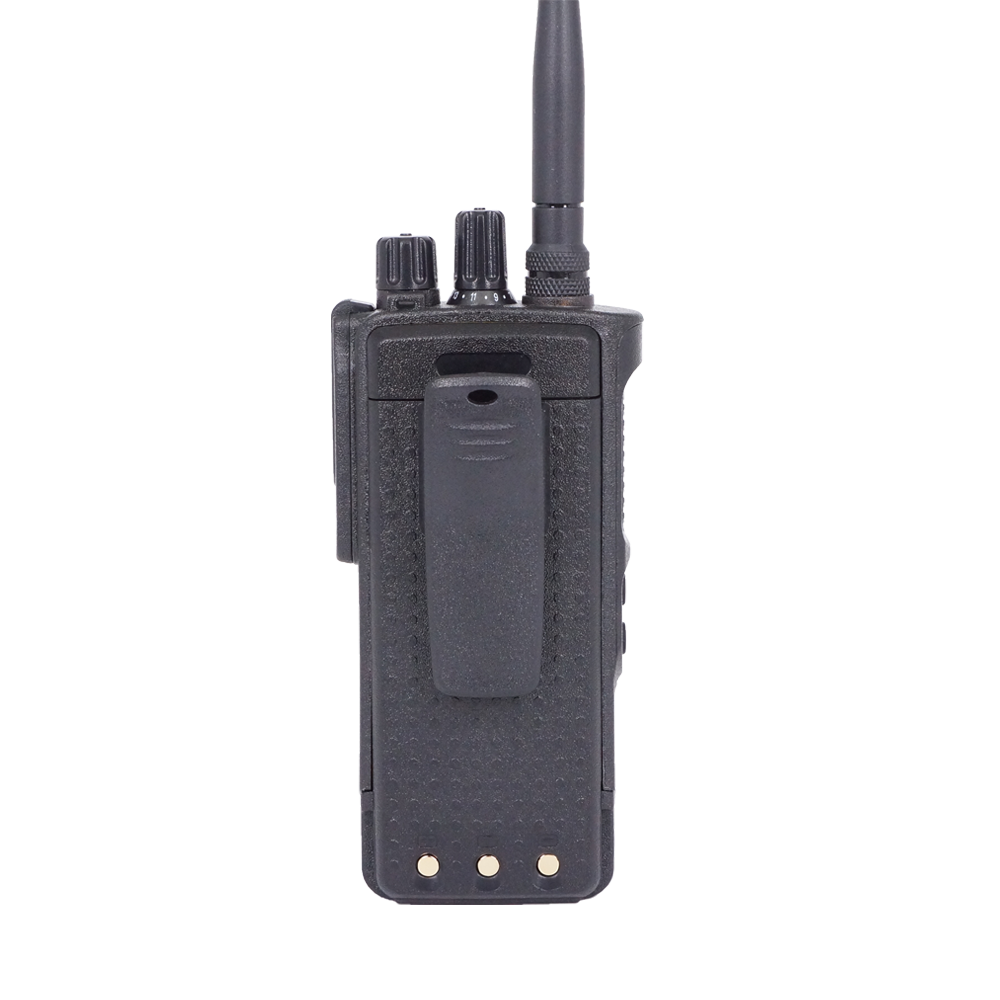

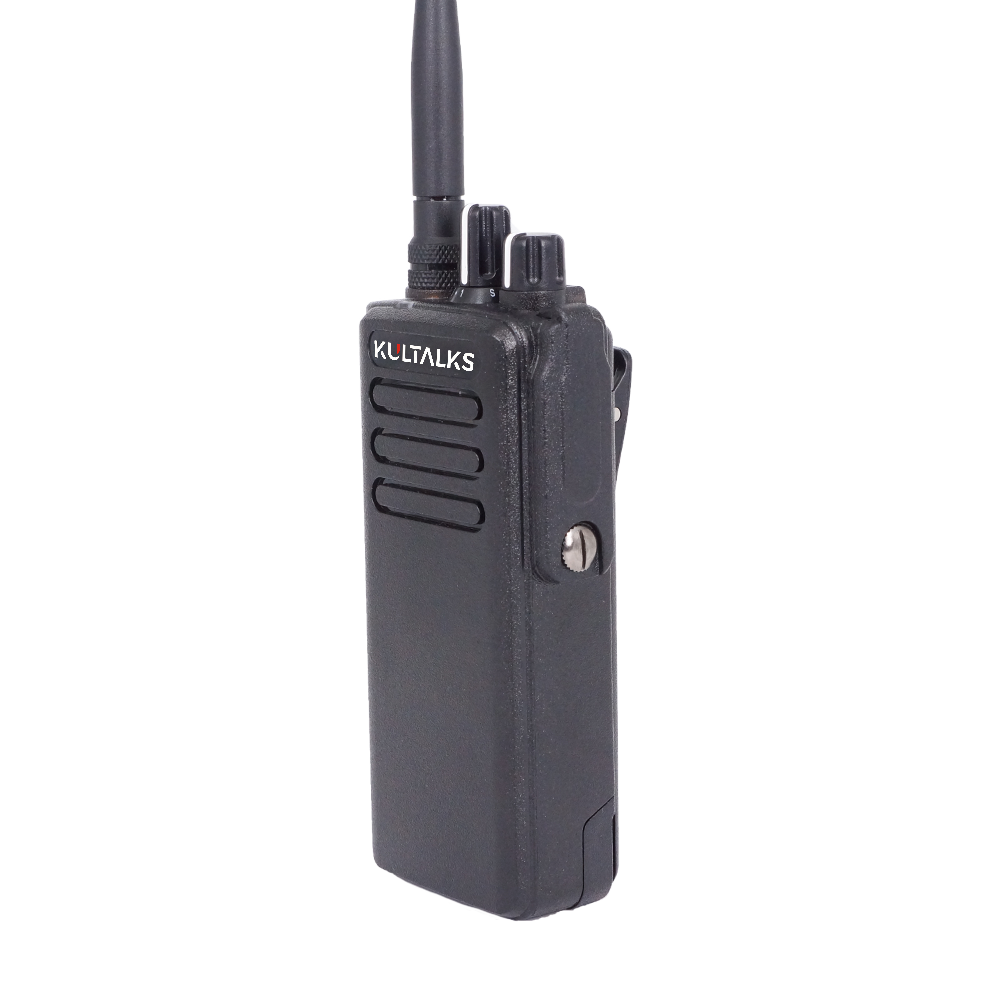

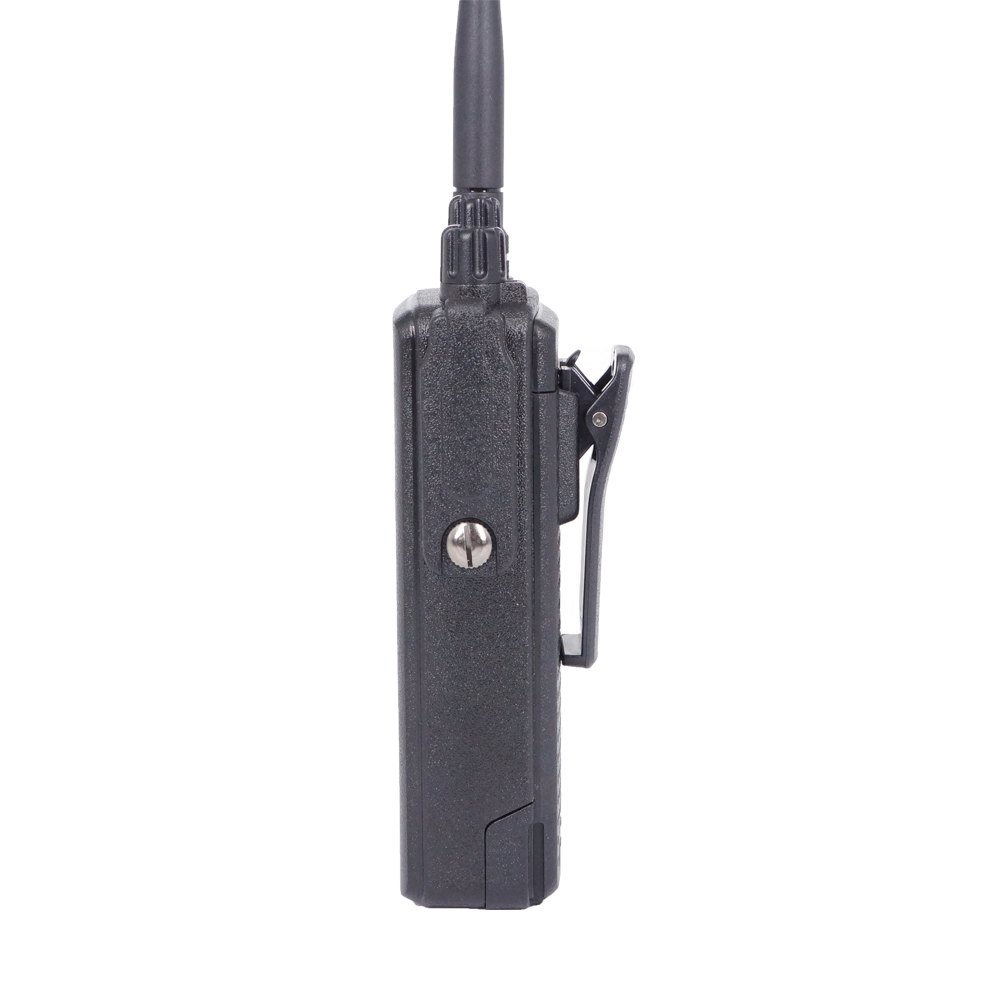

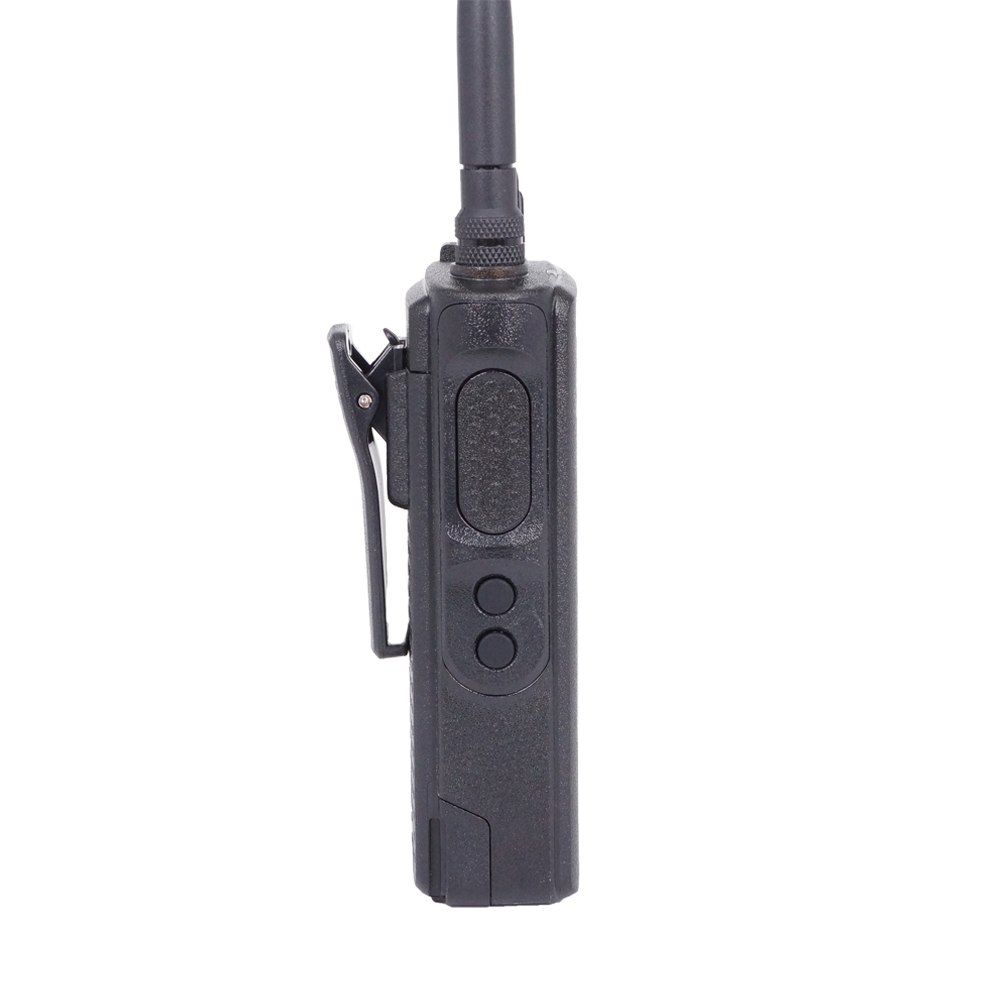

8600 Analog Two Way Radio

  • 50 CTCSS groups and 105 DCS groups

  • Chinese/English Voice Prompts

  • VOX Voice Control Function

  • 199 Storage Channels

  • Transmit Time-out Timer

  • Wide/Narrow Band Selection

  • Low Battery Alert

  • Scrambler Function

  • Scanning Function

  • Overview
  • Details
Scanning FunctionScrambler Function
Low Battery AlertWide/Narrow Band Selection
Transmit Time-out Timer199 Storage Channels
VOX Voice Control FunctionChinese/English Voice Prompts
50 CTCSS groups and 105 DCS groups

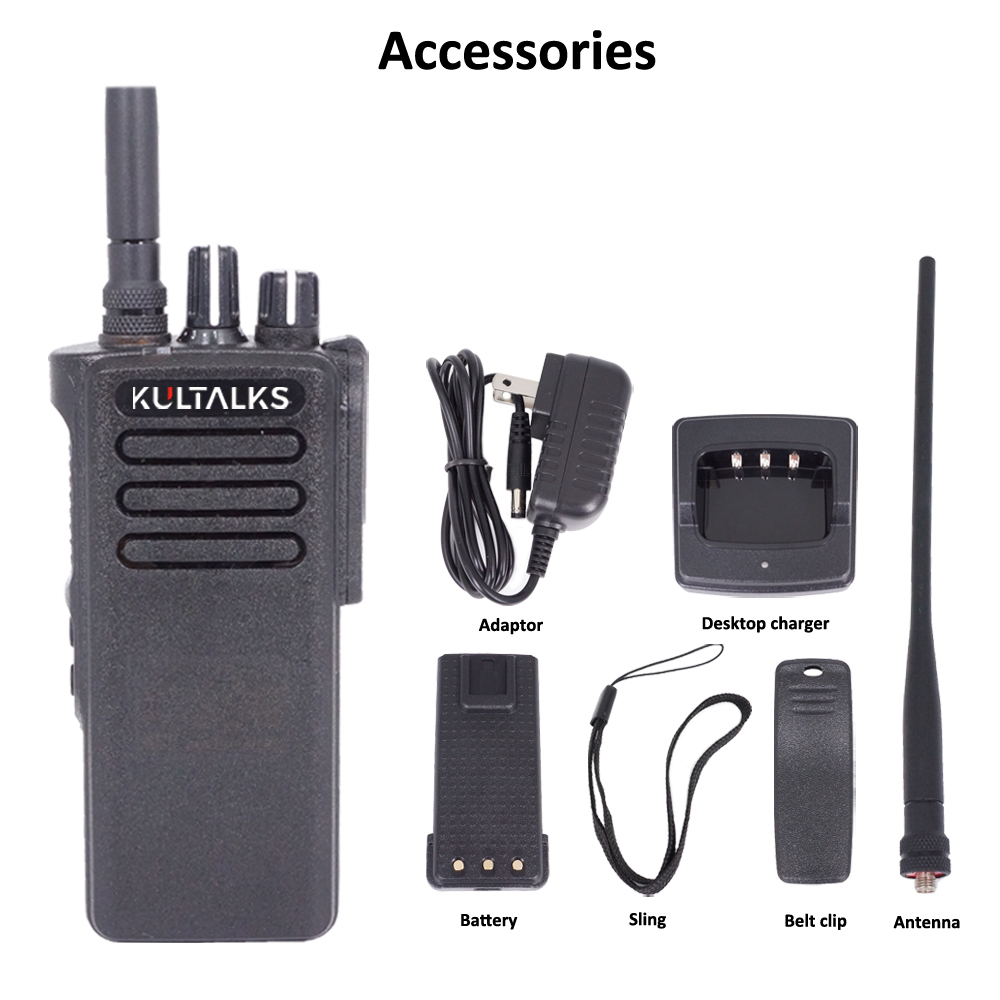

Accessories
STANDARD SPECIFICATIONS
FrequencyVHF:136-174MHz/UHF:400-470MHz(Optional)
Channel capacity199
Channel space12.5KHz/25KHz
Voltage7.4vdc
Antenna impedance50Ω
Battery capacity2600mAH
Work temperature-20℃ to +60℃
Size(include battery, exclude antenna)130*33*56mm
Weight(include battery and antenna)143g
RECEIVING PERFORMANCE
Receiving Sensitivity<0.6uV( 12dB SINAD )
Adjcent Channel Selectivity25K≥65dB 12.5K≥60dB
Block≥80dB
Bigcnal-to-Noise Ratio25K≥45dB  12.5K≥40dB
Received Audio Power≥0.5w
Audio Distortion≤5%
TRANSMITTING PERFORMANCE
Transmitting Power10W
Modulation Method16KФF3E/8KФF3E
Modulation Limitation+5KHz/+2.5KHz
Modulation distortion≤5%
Residual frequency modulation-45dB
Adjacent channel power-67dB
Emission stray-36dBm
Maximum frequency deviation25K≤5kHz 12.5K≤2.5kHz
Frequency Stability+2.5ppm
