VOX function
Voice prompt
Channel Scan
Power Save
Low battery alarm
GENERAL
Frequency
400-470MHz
Channel capacity
16
Channel space
12.5KHZ
Frequency stability
±2.5ppm
Voltage
7.4vdc
Antenna impedance
50Ω
Work temperature
-40℃ to +50℃
Battery capacity
3200mAh
Size(include battery, exclude antenna)
120x65x35mm
Weight(include battery and antenna)
535g
TRANSMITTER

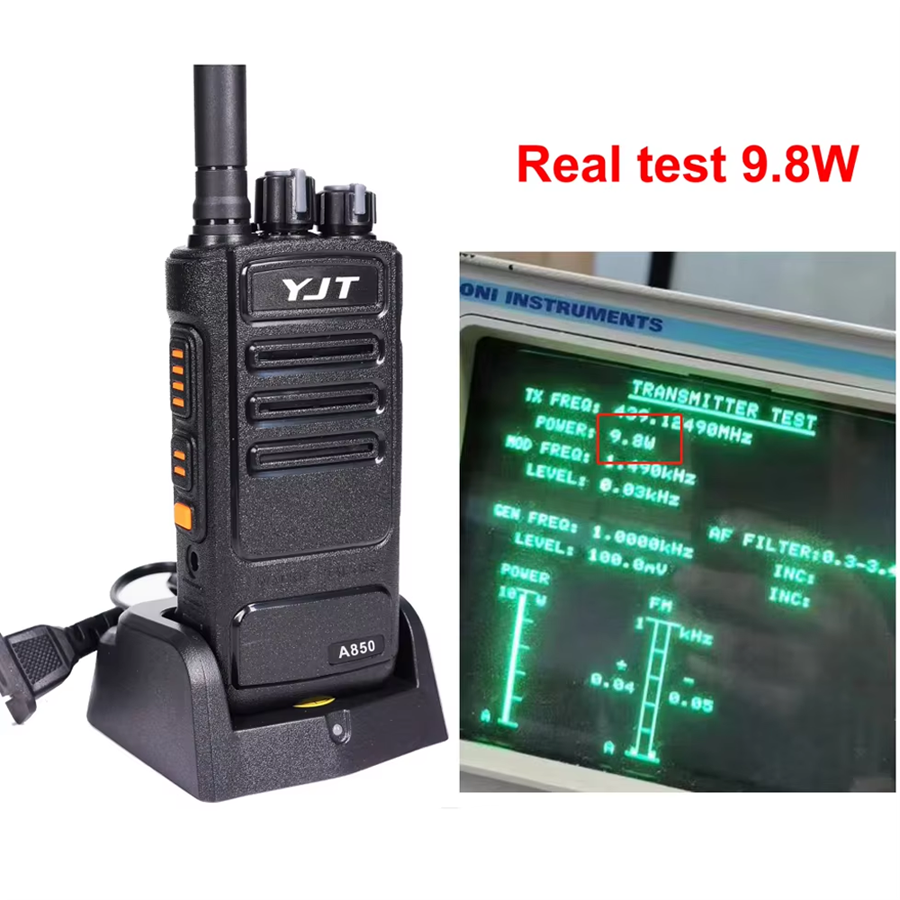

Output power
10W
Modulation limit
≤±5KHz/25kHz
FM Hum & Noise
≥-45dB
Modulation maximum deviation
≥65db
RECEIVER
Sensitivity (12 dB SINAD)
8~12mV
Adjacent channel selectivity
≥70db
Audio output power
≥350mW
Audio distortion
<10%
