With CE Certificate
CTCSS/DCS auto scanning

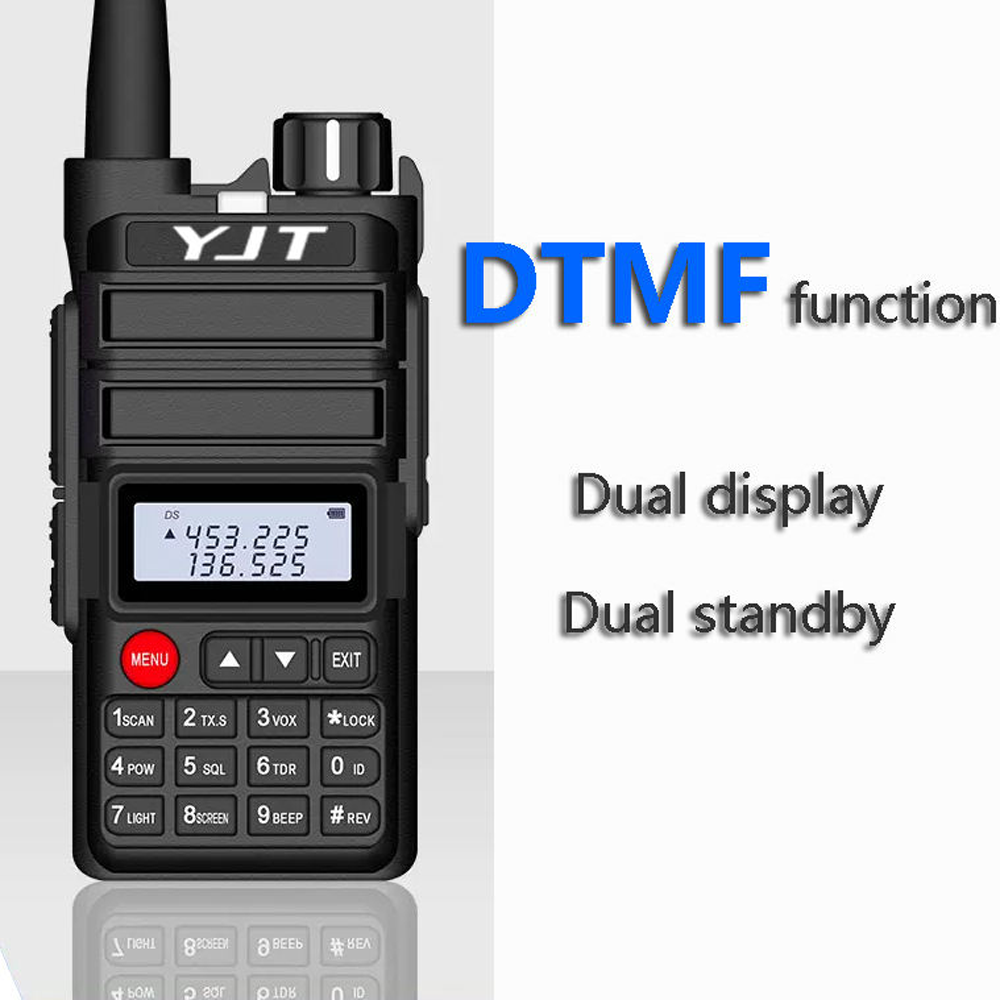

DTMF function
FM radio
Flashlight
Dual display,dual standby
GENERAL
Frequency
135-175MHz & 400-480MHZ
Channel capacity
128
Channel space
12.5/25KHZ
Frequency stability
±2.5ppm
Voltage
7.4vdc
Antenna impedance
50Ω
Work temperature
-20'℃ to +40℃
Battery capacity
2800mAh

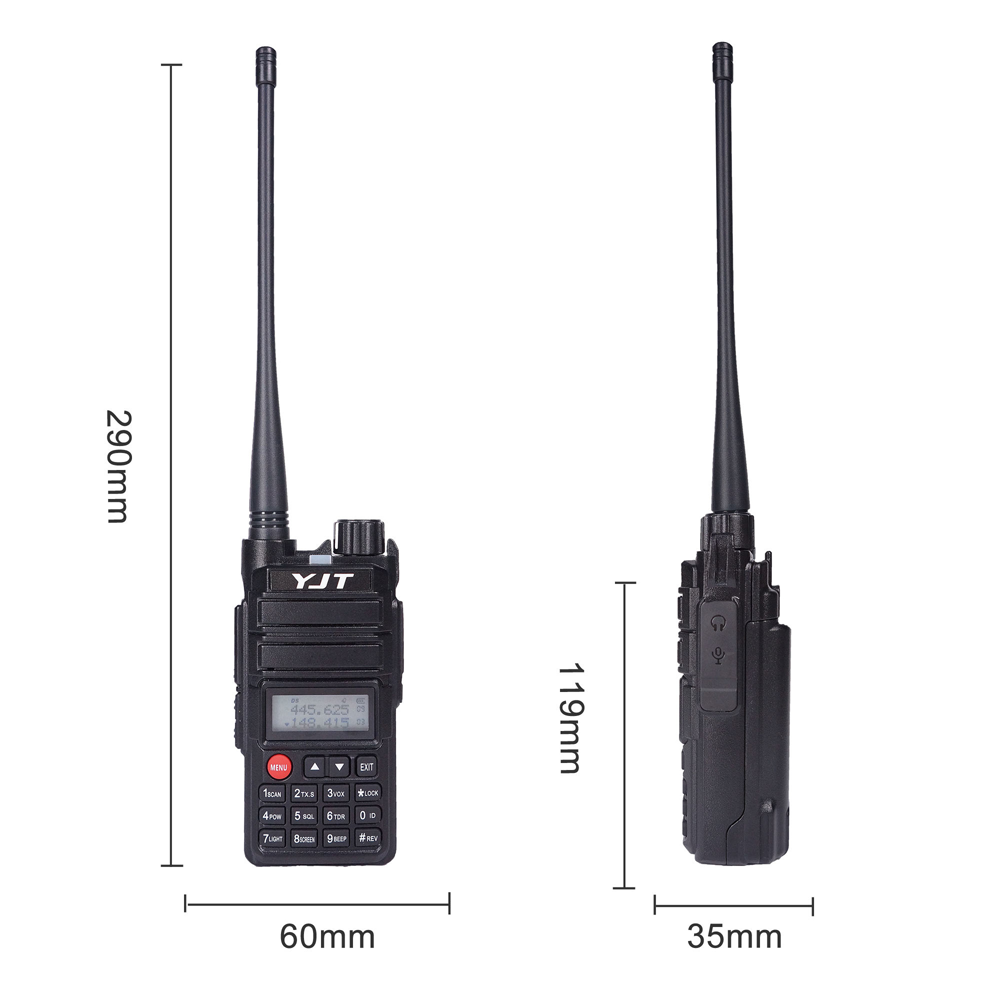

Size(include battery, exclude antenna)
119x60x35 mm
Weight(include battery and antenna)
230g
TRANSMITTER
Output power
5W
Modulation limit
≤±5kHz@25KHz
FM Hum & Noise
45dB@25KHZ
Modulation maximum deviation
≥70db
RECEIVER
Sensitivity (12 dB SINAD)
0.25uV(12dB SINAD)
Adjacent channel selectivity
≤70dB
Audio output power
≥400mW
Audio distortion
≤5%
